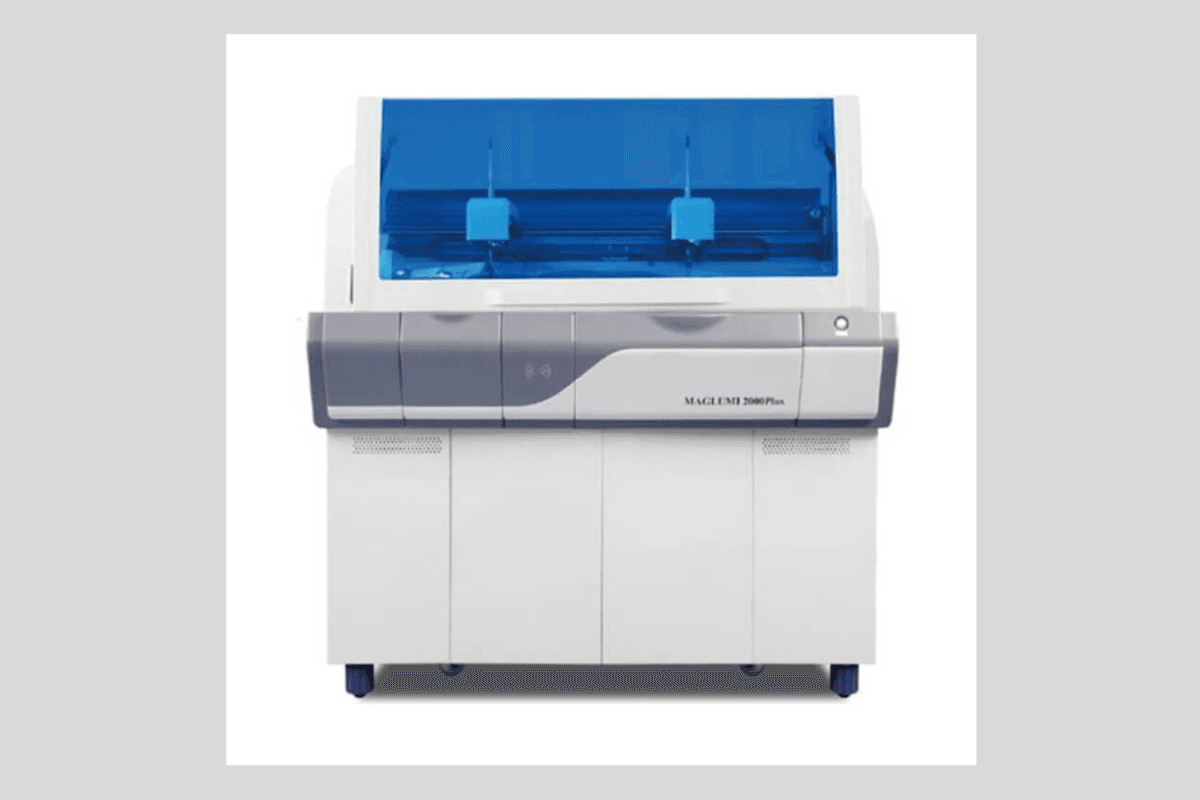

Features and Benefits of Maglumi 2000 Analyser & Integration with Flabs LIS

Modern diagnostic laboratories demand accuracy, speed, and efficiency without compromising reliability. The Maglumi 2000 analyser, developed by Snibe (Shenzhen New Industries Biomedical Engineering Co., Ltd.), is designed to meet these needs through advanced chemiluminescence immunoassay (CLIA) technology. Built for mid- to large-sized hospitals, the system integrates ABEI labelling technology and magnetic microbead separation to deliver consistent results across a wide diagnostic spectrum.

In this detailed review, we explore the features and benefits of the Maglumi 2000 analyser, with specific relevance to clinical laboratories, pathologists, and healthcare institutions.

MAGLUMI 2000 Principle

The MAGLUMI 2000 principle is based on chemiluminescence immunoassay, which combines labelling and separation technologies to achieve superior diagnostic accuracy.

ABEI Labelling Technology: Unlike enzyme labels that degrade with storage fluctuations, ABEI is a non-enzyme small molecule with chemical stability in both acidic and alkaline conditions. Its reaction with sodium hydroxide and hydrogen peroxide completes within three seconds, ensuring faster throughput and higher signal stability.

Magnetic Microbead Separation: This system maximises antigen-antibody interactions by enlarging surface area and minimising intra- and inter-assay discrepancies. It also enhances sensitivity through faster capture and efficient mixing.

Together, these technologies form the backbone of the analyser, ensuring precise and reproducible results across multiple test categories.

Features of Maglumi 2000 Analyser

The Maglumi 2000 incorporates automation, capacity, and intelligent design to streamline laboratory workflows.

Feature	Details
Sample Handling	Up to 144 samples onboard with barcode recognition; random, batch, and STAT modes supported
Reagent Capacity	15 reagents onboard with RFID labels for reliable tracking and continuous loading
Reaction Throughput	Up to 120 reaction modules; 96 simultaneous tests across 16 incubator slots
Detection	High-sensitivity, low-noise photomultiplier tube (PMT); cuvette monitoring with anti-overflow
Needle Technology	Titanium aspirating needle with clot detection, liquid level detection, and TEFLON coating to prevent carry-over
Automation	Automated cuvette loading, inner and external washing system, and strong magnetic field separation
Software	User-friendly interface with real-time status monitoring, reagent tracking, alarms, and multilingual support
Connectivity	Bidirectional LIS (TCP/IP and COM) for seamless integration into hospital information systems
Maintenance	Smart maintenance protocols with daily, weekly, and monthly schedules guided by software

Benefits of Maglumi 2000 Analyser

1. Enhanced Diagnostic Accuracy

The combination of ABEI chemiluminescence labels and magnetic microbeads provides consistent assay sensitivity, even for low-abundance biomarkers. This ensures accurate detection across a wide range of clinical conditions.

2. High Throughput and Efficiency

With continuous loading capacity, the system accommodates urgent samples (STAT) without interrupting routine testing. The ability to process up to 96 tests simultaneously improves turnaround time for high-volume laboratories.

3. Cost Optimisation

The analyser is supplied with free quality control and calibrators, reducing per-test expenses. External quality assessment (EQA) compliance further strengthens cost-effectiveness without sacrificing standards.

4. Broad Test Menu

The MAGLUMI 2000 test menu covers over 150 assays across disciplines such as thyroid, fertility, cardiac, tumour markers, autoimmune, infectious disease, metabolic panels, and more. This reduces the need for multiple analysers within the same facility.

5. Workflow Integration

The bidirectional LIS connection and RFID reagent tracking enable smooth integration into hospital workflows, minimising human error and improving laboratory productivity.

6. Ease of Operation and Maintenance

The user-friendly software interface and smart maintenance guide reduce technical complexity. Automated washing and monitoring systems decrease downtime and ensure consistent performance.

MAGLUMI 2000 Test Menu Highlights

• Endocrinology: TSH, T3, T4, FT3, FT4, thyroid antibodies
• Fertility and Reproductive Health: FSH, LH, HCG, AMH, testosterone, progesterone.
• Cardiac Markers: Troponin I, CK-MB, NT-proBNP, D-Dimer
• Tumour Markers: CEA, AFP, PSA, CA 125, CA 19-9
• Infectious Diseases: HIV, HBsAg, HCV, Syphilis, SARS-CoV-2 antibodies
• Bone Metabolism: Vitamin D, Osteocalcin, PTH
• Autoimmune Disorders: ANA, anti-dsDNA, anti-CCP
• Inflammatory Markers: hs-CRP, IL-6, Procalcitonin

Maglumi 2000 Uses

• Routine hospital diagnostics in mid- and large-sized healthcare facilities
• Speciality testing in endocrinology, oncology, and cardiology labs
• Public health laboratories for screening infectious diseases
• Academic and research settings for clinical investigations

Its flexibility and scalability make it suitable for laboratories managing diverse diagnostic needs.

Operation Software and User Experience

The Maglumi 2000 user manual emphasises ease of use, offering:

• Real-time monitoring of samples, reagents, and consumables.
• Intelligent alarms for reagent shortage or maintenance requirements.
• Westgard rules and Levey-Jennings charts for quality control compliance.
• Pre- and post-dilution features for high-concentration samples.

Multilingual support (10+ languages) ensures accessibility across global healthcare systems.

Dimensions and Technical Specifications

• Size: 135 × 64 × 87 cm
• Weight: 158 kg
• Power Input: AC 110/230 Vac, 50/60 Hz
• Temperature Control: Incubation at 36.8℃ ± 0.5℃
• Operating System Compatibility: Windows 7 and Windows 10

These specifications enable reliable installation and operation in standard clinical laboratory environments.

Integration of Maglumi 2000 with Flabs LIS

While the Maglumi 2000 analyser delivers precision diagnostics through advanced CLIA technology, its full potential is unlocked when paired with a modern laboratory information system. Flabs LIS Pathology Software is designed to interface effortlessly with analysers like the Maglumi 2000, ensuring a connected, error-free, and efficient diagnostic environment.

Why Flabs LIS is the Best Match for Maglumi 2000

• Effortless Connectivity: The Maglumi 2000 supports bidirectional LIS connection (TCP/IP and COM), and Flabs LIS is fully compatible with industry-standard protocols such as HL7 and ASTM. It ensures smooth, plug-and-play integration without requiring complex technical expertise.
• Automated Data Capture: Maglumi 2000 automatically reads and processes sample information with barcoding and RFID, while Flabs LIS eliminates manual data entry by capturing results directly from the analyser. The two-way automation ensures data integrity from sample to report.
• Real-Time Diagnostics: With Maglumi 2000’s high-throughput capability (up to 96 tests simultaneously), pairing with Flabs LIS enables real-time data transmission to clinicians. This significantly reduces turnaround times and accelerates diagnosis.
• Custom Alerts and Monitoring: Maglumi’s intelligent alarms for reagent shortages or maintenance align perfectly with Flabs LIS’s custom alert system, ensuring lab staff are instantly notified about critical values or instrument issues.
• Comprehensive Reporting: Flabs LIS generates customisable reports that can incorporate Maglumi 2000’s wide test menu, including endocrinology, fertility, cardiac, tumour markers, and infectious diseases, into structured, easy-to-interpret outputs for pathologists and clinicians.
• Secure and Compliant: Both systems emphasise reliability. Flabs LIS provides robust encryption and regulatory compliance, ensuring sensitive patient data from Maglumi 2000 workflows remains secure and audit-ready.

Transform Your Lab Operations

By integrating the Snibe Maglumi 2000 analyser with Flabs LIS Pathology Software, laboratories gain a unified ecosystem that enhances accuracy, reduces turnaround times, and scales with diagnostic demands. From mid-sized hospitals to large diagnostic centres, this combination empowers laboratories to achieve operational excellence.

Schedule a Demo with Flabs LIS Today and discover how seamless integration with the Maglumi 2000 can redefine efficiency and reliability in your laboratory.

Conclusion

The Maglumi 2000 analyser is a robust CLIA system engineered for reliability, speed, and diagnostic precision. With advanced ABEI labelling, magnetic microbead separation, and a wide-ranging test menu, it delivers operational efficiency for healthcare professionals. From endocrinology to infectious disease testing, the platform enables laboratories to expand diagnostic capabilities while maintaining cost-effectiveness and workflow integration.

For laboratories seeking a reliable and high-performance Snibe Maglumi 2000 system, this analyser provides both technical innovation and practical usability, making it a trusted choice in modern clinical diagnostics.
