How Sysmex XN550 Enhances Haematology Diagnostics

Haematology diagnostics continues to evolve with compact, automated systems designed for accuracy, speed, and operational efficiency. Among these, the Sysmex XN550 stands out as a reliable 6-part differential haematology analyser that balances advanced functionality with user-friendly features. For pathologists and healthcare professionals, it offers precise diagnostic insights while maintaining workflow simplicity.

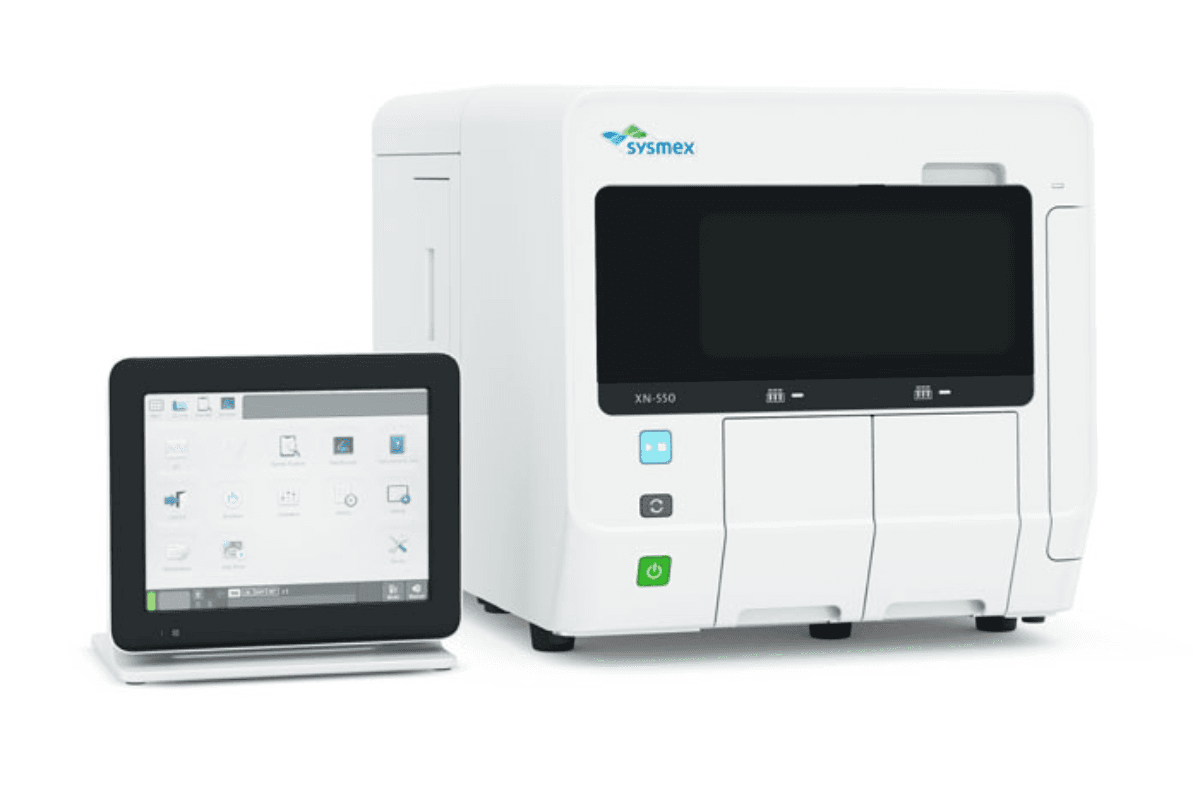

Sysmex XN550 at a Glance

The Sysmex XN550 is engineered for laboratories seeking an analyser that combines compact design with robust diagnostic performance. Unlike larger models, it operates efficiently in limited bench space without compromising throughput or result quality.

Major Attributes

• Automated 6-part differential analysis.
• Closed-mode sampling for safety.
• Integrated IPU (information-processing unit) with LCD colour touchscreen.
• No need for an external computer.
• Fluorescence flow cytometry and hydrodynamic focusing for accuracy.
• Cyanide-free SLS method for haemoglobin measurement

Sysmex XN550 Specifications

The following table summarises the Sysmex XN550 specifications most relevant to laboratory operations

Parameter	Details
Dimensions	450 × 450 × 660 mm, ~53 kg
Throughput	CBC+DIFF: up to 70 samples/hour; CBC+DIFF+RET: up to 35 samples/hour; Body fluid mode: up to 30 samples/hour
Aspiration Volume	25 µL (WB/Low WBC); 70 µL (PD/BF mode)
Storage	100,000 results, 10,000 patient records
Analysis Parameters	WBC, RBC, HGB, HCT, MCV, PLT, RDW, NEUT#, LYMPH#, MONO#, EO#, BASO#, IG#, RET (optional), Body fluids (optional)
Methodologies	Fluorescence flow cytometry, DC impedance with hydrodynamic focusing, Cyanide-free SLS method

These Sysmex XN550 specifications highlight its adaptability across different sample types and diagnostic requirements.

Sysmex XN550 Methodology and Principle

The Sysmex XN 550 methodology is rooted in fluorescence flow cytometry and hydrodynamic focusing, ensuring precise cell differentiation. Its principles include:

• WBC DIFF/RET: Fluorescence flow cytometry for high sensitivity and clear separation of cell populations.
• RBC/PLT: Direct current impedance with hydrodynamic focusing for consistent counts.
• HGB: Cyanide-free sodium lauryl sulphate (SLS) method for safer haemoglobin measurement.

Procedure and Workflow

1. Closed tube sampling minimises biohazard risks.
2. Automated aspiration requires minimal manual handling.
3. Integrated touchscreen provides direct access to controls, patient data, and results.
4. Optional modes (RET and body fluids) expand clinical utility when required.

For busy haematology labs, this means steady throughput with consistent quality control.

Routine Cleaning and Maintenance

Daily operations demand reliability, and the Sysmex XN 550 routine cleaning protocol supports this.

• Automated daily shutdown routines.
• Weekly cleaning sequences with Cellclean or Cellclean Auto.
• User-friendly maintenance scheduling within the IPU.

This ensures consistent performance while minimising downtime, which is essential in high-volume diagnostic settings.

Advantages for Pathologists and Healthcare Professionals

Efficiency in diagnostics – With up to 70 CBC+DIFF analyses per hour, laboratories can maintain workflow even during peak periods.

Data management – Storing up to 100,000 results and 10,000 patient records streamlines record-keeping and retrospective analysis.

Flexibility – Upgradeable features support future needs beyond CBC+DIFF.

Ease of operation – The colour touchscreen interface reduces the need for extensive training.

These features directly support laboratory decision-making and patient management.

Operator’s Manual and Clinical Use

The Sysmex XN 550 operator’s manual provides detailed instructions covering installation, operation, calibration, and troubleshooting. Pathologists and technicians using the analyser benefit from clear workflows that align with international laboratory standards. Clinical applications extend from routine haematology to more advanced investigations using reticulocyte and body fluid modes.

Sysmex XN550 Price in India

The Sysmex XN550 price in India varies widely depending on the supplier, configuration, and additional modules included. Current listings indicate that pricing can range from approximately ₹6,40,000 to ₹17,00,000.

Some distributors offer the Sysmex Fully Automatic 6-Part XN550 Haematology Analyser at around ₹6,40,000, making it accessible for medium-sized laboratories.

Other suppliers list higher-end packages, with prices reaching up to ₹14,99,999 and even ₹17,00,000, often including extended features, accessories, or service agreements.

For laboratory decision-makers, engaging with authorised distributors is essential. Beyond initial acquisition, ongoing reagent supply and maintenance should also be factored into total operational costs.

Flabs Pathology Software: The Best LIS Partner for Sysmex XN550

Modern haematology analysers like the Sysmex XN550 deliver precision and efficiency at the bench. However, to unlock their full potential, laboratories need a laboratory information system (LIS) that can seamlessly manage data, integrate with instruments, and streamline workflows. This is where Flabs Pathology Software stands out.

Seamless Integration with Sysmex XN550

Flabs provides direct compatibility with leading haematology analysers, including the Sysmex XN550. Results generated on the analyser can be automatically captured and stored within the LIS, reducing manual entry errors and ensuring faster turnaround times.

Streamlined Laboratory Operations

With Flabs, diagnostic labs can simplify day-to-day tasks such as patient registration, automated analysis logging, and report generation. Features like QR-coded digital reports and WhatsApp-based communication make it easier to share results with patients, aligning with the fast-paced requirements of modern laboratories.

Enhancing Patient Experience

Patients expect quick, secure, and transparent access to their reports. Flabs provices a dedicated patient portal, enabling individuals to log in with their phone numbers and access their test results anytime. When paired with the Sysmex XN550, it ensures that precise haematology insights are delivered quickly and conveniently.

Scalable and Secure by Design

As laboratories grow, Flabs scales effortlessly, supporting multiple collection centers while keeping data centralised and protected. Built with compliance and security at its core, Flabs safeguards patient records through secure backups and industry-standard data protection measures. It is a future-ready platform for laboratories seeking to expand without compromising reliability.

Ready to Connect Sysmex XN550 with a Smarter LIS?

Flabs Pathology Software is designed to complement advanced analysers like the Sysmex XN550. It is trusted by 1100+ labs in India.

Start a Free Trial or Request a Demo to see how Flabs can elevate your laboratory workflows.

Conclusion

The Sysmex XN550 delivers advanced haematology diagnostics through a combination of compact design, accurate methodologies, and operational efficiency. Its specifications, methodology, and user-focused design support the daily requirements of pathologists and healthcare professionals. By balancing diagnostic precision with practical usability, it represents a dependable choice for laboratories to strengthen haematology services.
