What is the average maintenance requirement for the Mindray BC5130?

The Mindray BC5130 requires minimal maintenance, usually limited to routine cleaning, reagent replacement, and scheduled calibration checks to maintain accurate performance.

Can the Mindray BC5130 be used in emergency laboratories?

Yes, its compact size, quick throughput of 60 samples per hour, and reliable CBC with differential make it suitable for emergency and urgent care labs.

Does the Mindray BC5130 support pediatric sample analysis?

Yes, the analyser supports capillary blood mode, making it highly suitable for pediatric hospitals and clinics where small-volume samples are commonly tested.

How many operators can use the Mindray BC5130 simultaneously?

The analyser features a large touchscreen interface and LIS connectivity, allowing multiple operators to access and review patient results efficiently across connected systems.

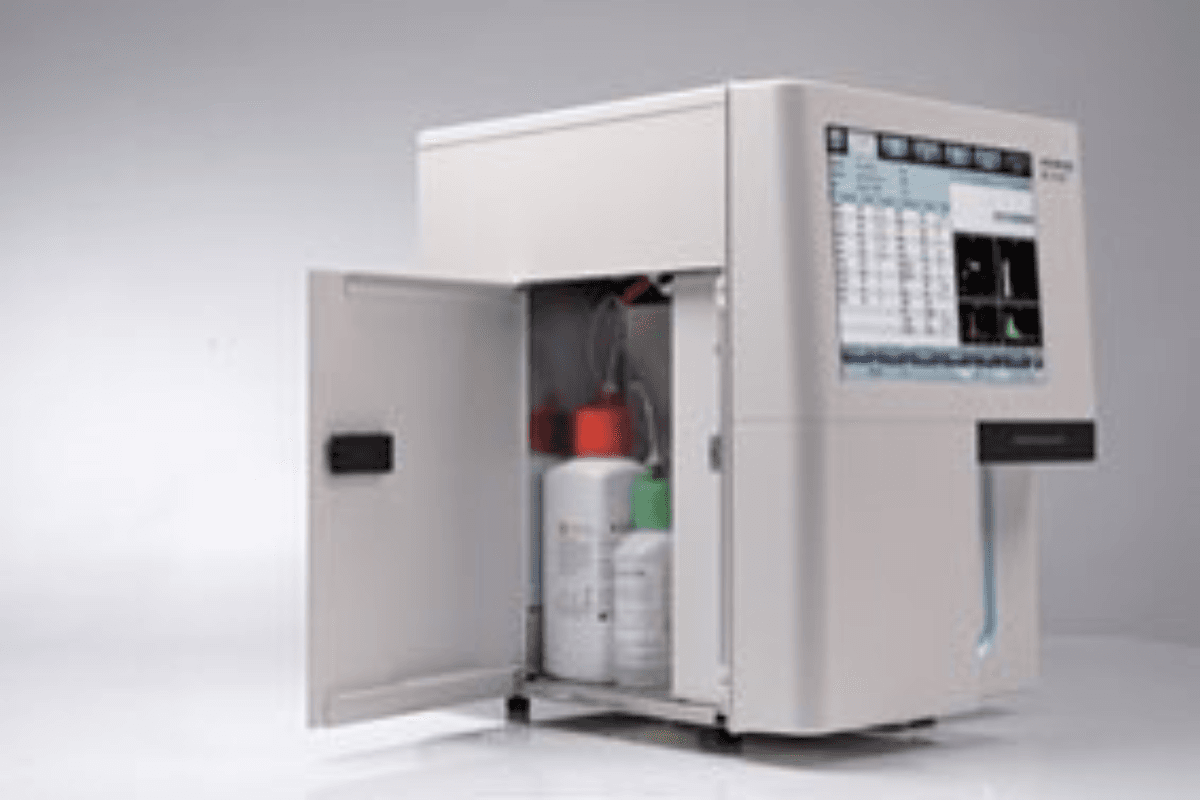

Overview of Mindray BC5130 in Haematology Analysis & Flabs Integration

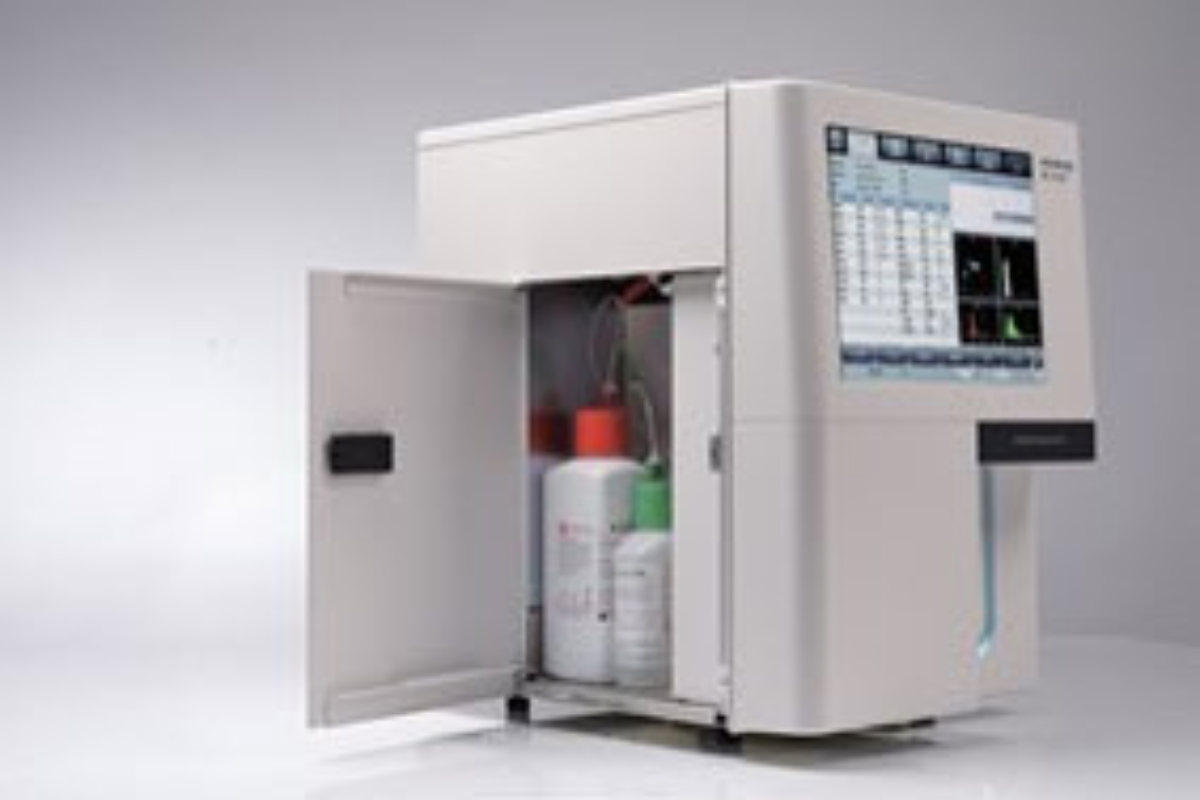

The Mindray BC5130 is a compact, five-part haematology analyser designed for laboratories that require complete blood count (CBC) results with differential analysis. For pathologists and healthcare professionals, it combines reliable performance, efficiency, and space-saving design. The analyser is suitable for diagnostic settings with moderate sample volumes, limited laboratory space, or cost constraints.

Features of the Mindray BC5130

The Mindray cell counter 5 part offers several functions that enhance clinical workflow.

Feature	Specification
Parameters	25 reportable parameters, 23 research parameters
Sample Modes	Whole blood, capillary whole blood, prediluted
Throughput	60 samples/hour
Display	10.4-inch TFT touchscreen
Data Storage	Up to 1,50,000 results
Technology	Tri-angle laser scatter + chemical dye + flow cytometry
Reagents	Three routine reagents, 2-year shelf life
Weight	24 kg
Dimensions	400 × 320 × 410 mm

These specifications place the Mindray haematology analyser in a competitive position for laboratories needing consistent and traceable results without heavy infrastructure.

Compact Design with Advanced Technology

The Mindray 5 part haematology analyser is one of the smallest systems in its category, weighing just 24 kg and measuring 400 × 320 × 410 mm. Its compact size is achieved through innovative engineering, including:

Miniaturised semiconductor laser source
Integrated electronic boards
Optimised liquid handling system

Unlike conventional haematology analysers, the BC5130 requires only three routine reagents with extended shelf life, reducing both cost and laboratory footprint.

Performance in Clinical Application

The 5-part Mindray haematology analyser provides robust performance across diverse clinical settings.

WBC 5-Part Differentiation: Accurate analysis of lymphocytes, monocytes, neutrophils, eosinophils, and basophils.
Dedicated Basophil Channel: Improves precision in basophil measurement.
Histograms & Scattergrams: Three histograms (WBC, RBC, PLT) and scattergrams for WBC differential analysis.
NLR Parameter: Provides the neutrophil-to-lymphocyte ratio, an increasingly recognised marker in monitoring inflammatory states and disease prognosis.

Utility in Specialised Settings

The Mindray CBC machine supports multiple modes, making it versatile for patient demographics and sample conditions.

Capillary Mode: Particularly useful in pediatric settings.
Prediluted Mode: Offers high dilution ratios for samples with limited volume.
Whole Blood Mode: Standard for routine analysis.

Its LIS connectivity (including HL7 protocol) ensures seamless integration with hospital information systems.

Technological Advancements

The BC5130 incorporates advanced detection technologies.

Laser Scatter and Flow Cytometry: For accurate leukocyte differentiation.

Improved DC Impedance: Enhances RBC and platelet measurement, particularly for low platelet samples.

Semiconductor Laser: Smaller, longer-lasting, and more cost-efficient than traditional gas lasers.

These features provide consistency in results while keeping operational costs lower compared to older systems.

Advantages for Laboratories

Ease of Use: The large touchscreen interface eliminates the need for external PCs.

Cost Efficiency: Fewer reagents and reduced consumption lower recurring expenses.
Space Optimisation: Designed to operate in restricted laboratory environments.
Quality Assurance: Original QC and calibration solutions maintain reliability and traceability.

These attributes position the 5-part haematology analyser as a practical choice for small to mid-sized diagnostic laboratories.

Mindray BC5130 Pricing in India

The Mindray BC5130 pricing in India can range between ₹3,49,000 to ₹4,79,000, depending on the vendor, service package, and warranty period offered. Some distributors provide one to three years of warranty along with options such as free delivery and occasional discounts.

Several sellers list the analyser in the ₹3.8 lakh to ₹4.35 lakh bracket, while others position it closer to ₹4.2 lakh to ₹4.79 lakh. In some cases, pricing may exceed ₹7 lakh when bundled with extended services or accessories.

The final cost is influenced by,

Warranty duration (1–3 years common)
After-sales service packages
Availability of calibration and quality control materials
Payment terms and delivery conditions

Integration of Mindray BC-5130 with Flabs LIS

For haematology labs relying on the Mindray BC-5130, integration with a Laboratory Information System (LIS) is essential to reduce manual effort, improve efficiency, and maintain accuracy. The Flabs LIS is purpose-built for this level of automation, providing a comprehensive set of features that align with the advanced capabilities of the Mindray BC-5130.

Feature Synergy

Automated Data Capture: The BC-5130 generates high-throughput, five-part differential results. Flabs LIS captures this data directly through ASTM/HL7 interfaces, eliminating manual entry and reducing transcription errors.

Real-Time Transmission: With its bidirectional communication, the BC-5130 shares test requests and results instantly. Flabs LIS processes the data in real-time, ensuring rapid report generation.

Error Mitigation and Traceability: The Mindray BC-5130 provides reliable flagging for abnormal results. Flabs complements this with automated error-checking algorithms and complete traceability.

Custom Alerts: Abnormal haematology values flagged by the BC-5130 are instantly communicated through Flabs LIS’s customisable alert system. Clinicians are notified promptly for faster clinical decisions.

Secure Data Management: While the BC-5130 ensures analytical precision, Flabs LIS safeguards all results with encrypted data storage, secure backups, and compliance with healthcare data regulations.

Optimised Lab Operations

Together, the Mindray BC-5130 and Flabs LIS streamline the entire haematology workflow– from sample processing to reporting. Patient registration, instrument results, QR-coded report delivery, and even WhatsApp-enabled communication are managed seamlessly in one ecosystem. The integration ensures that your lab operates at maximum efficiency even during the busiest times.

Ready to unlock the full potential of your Mindray BC-5130?

Schedule a demo of Flabs LIS today and experience how effortless machine interfacing can transform your haematology operations.

Conclusion

The Mindray BS 240 demonstrates how compact analysers can deliver high throughput without compromising usability. From its broad test menu and intelligent software to low carryover and ISO-traceable calibration, it is well-suited for laboratories seeking a balance between efficiency and accuracy.

When paired with a modern LIS such as Flabs, the potential expands even further. Automated data capture, real-time transmission, and secure, customisable reporting integrate seamlessly with the analyser’s capabilities, creating a streamlined environment for both pathologists and technicians. Together, these solutions enhance patient care through faster, more reliable results.
